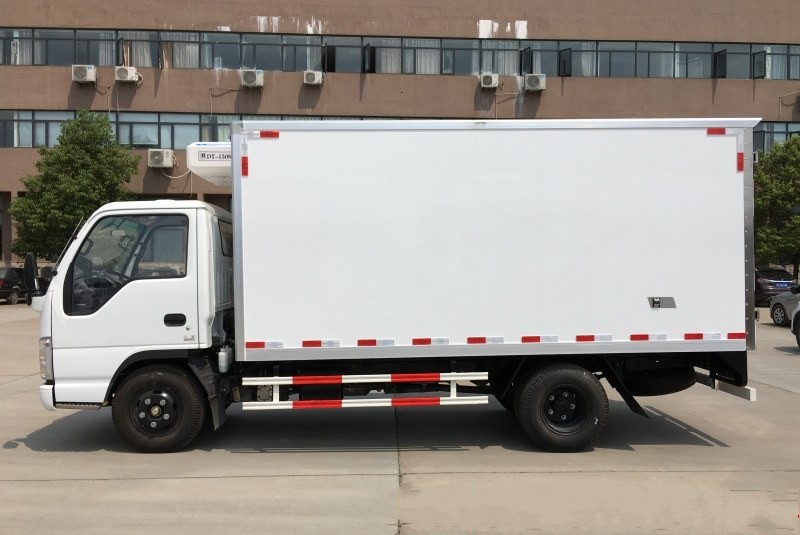

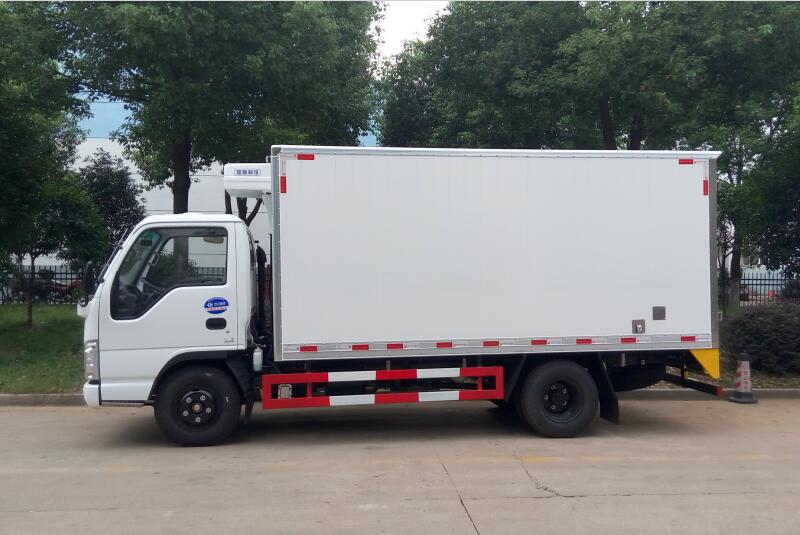

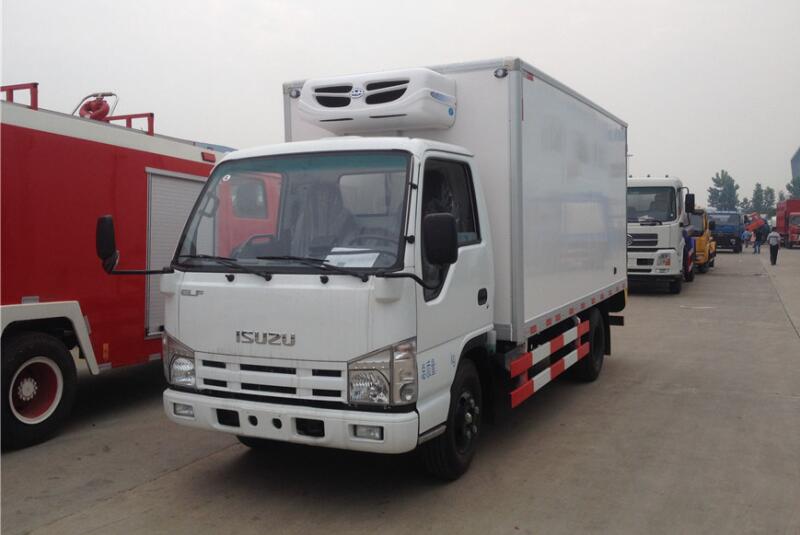

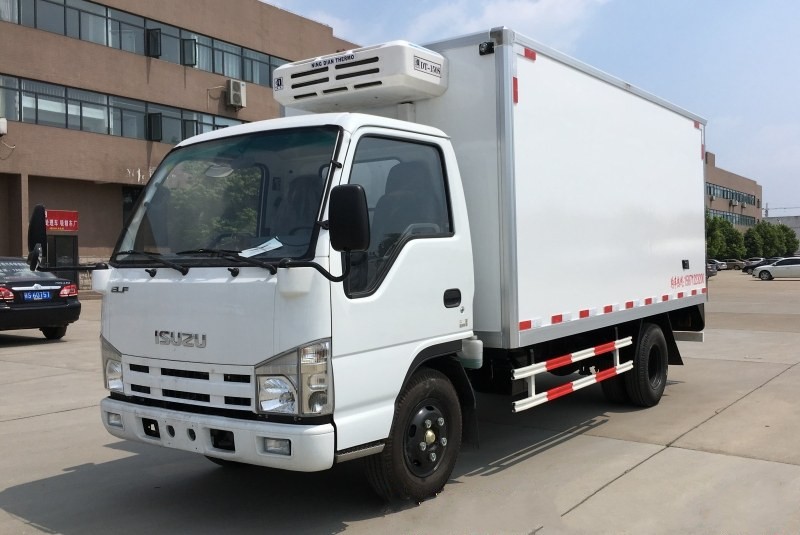

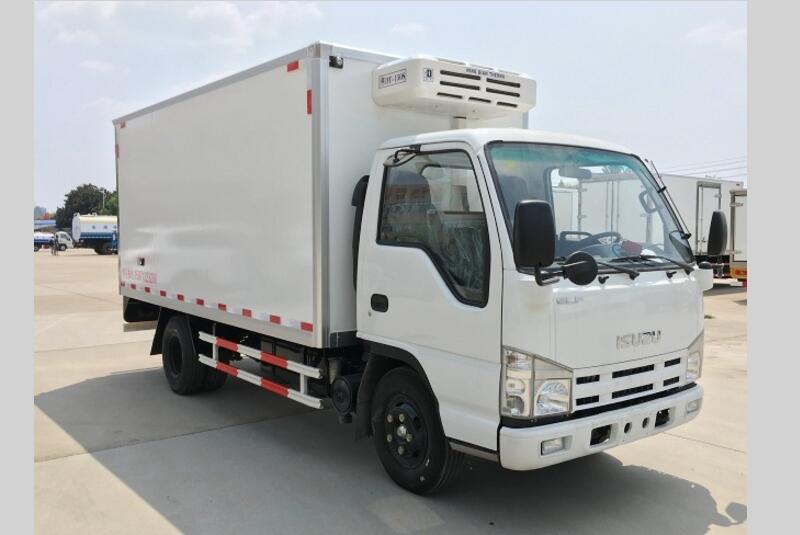

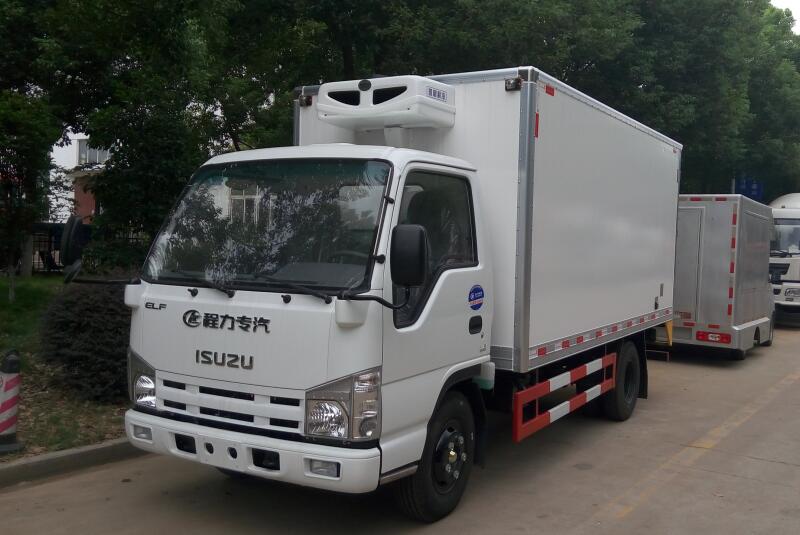

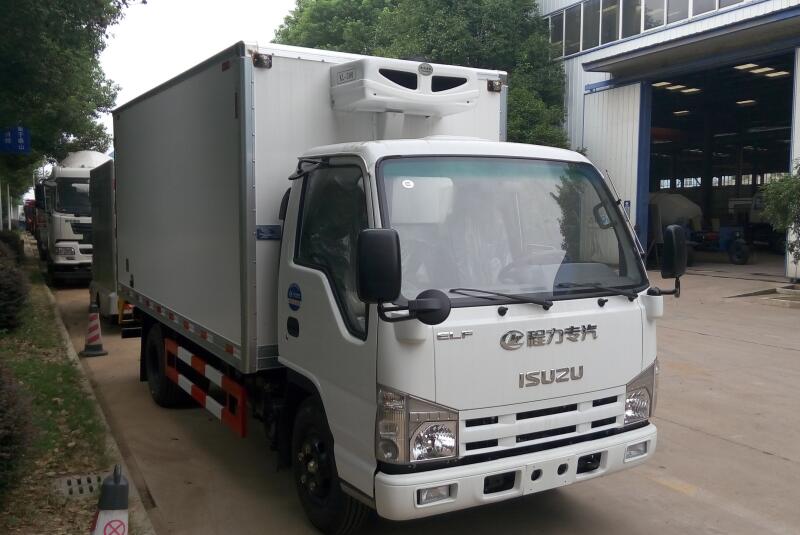

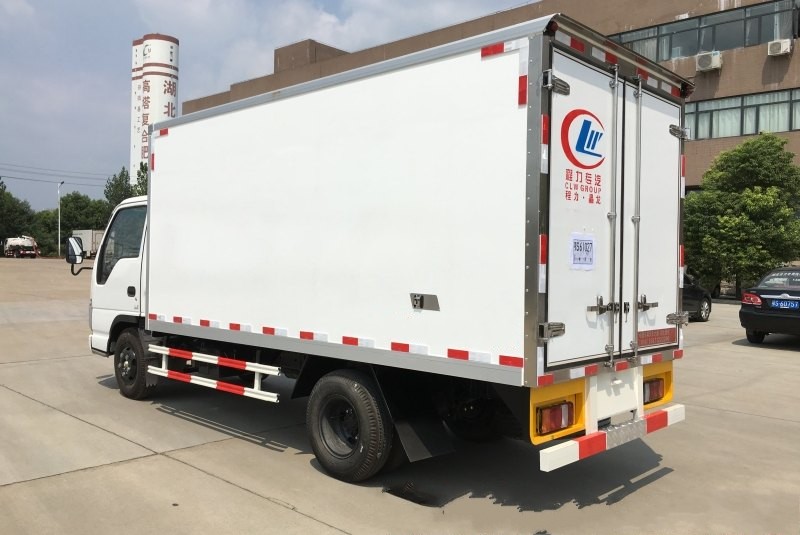

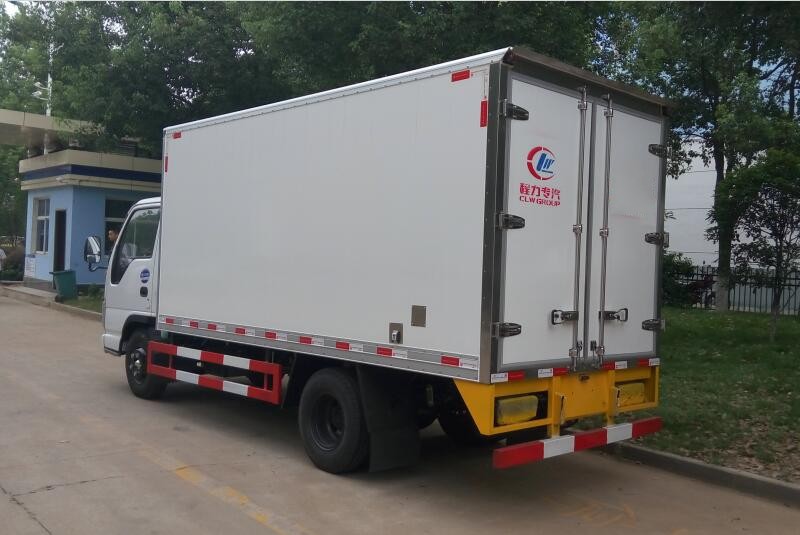

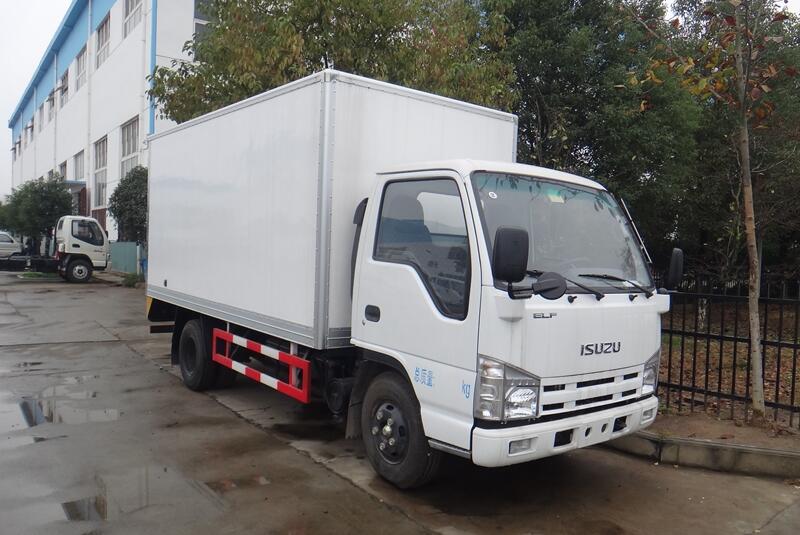

ISUZU CLW50503XLCE 7000L Refrigerator truck
| Vehicle parameters | ||||||
| Vehicle Model | CLW50503XLCE | Vehicle Brand | CHENGLI | |||
| Overall dimensions | 5650X2010X2300mm | Curb weight | 2980kg | |||
| Van dimensions | 3050X1765X1240mm | Loading capacity | 3000kg | |||
| Chassis parameters | ||||||
| Chassis model | QL10503HARY | Chassis brand | ISUZU | |||
| Overall dimensions | 5650x1860x2180mm | Wheel base | 3360mm | |||
| Front/rear wheel track | 1385/1425mm | Front/rear suspension | 1015/1525mm | |||
| Approach/departure angle | 24/16° | Maximum speed | 98km/h | |||
| Chassis Manufacturer | QingLing Motors (Group) Co., Ltd | |||||

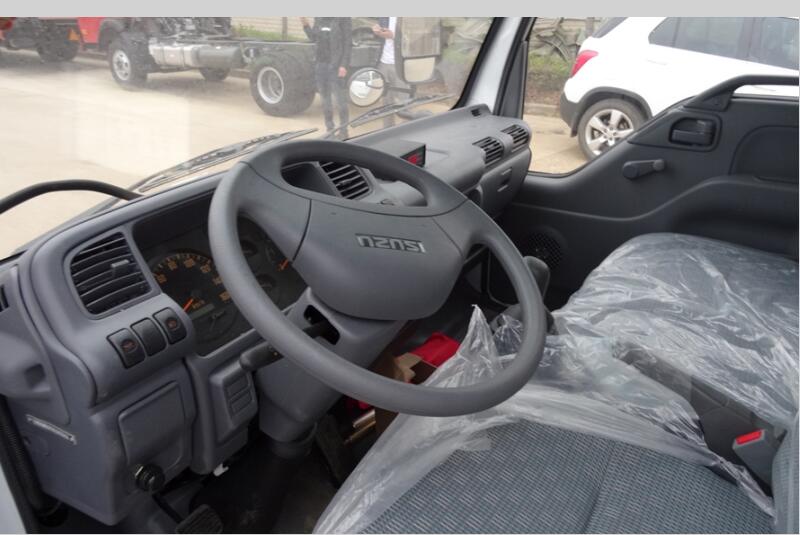

| Cab | Configuration | 100P ,single row cab,allowable 3 passengers,air conditioner, USB radio interface. | ||||
| Color | White,other color is optional | |||||
| Engine | Model | 4JB1CN | ||||
| Emission | Euro 4 | |||||
| Type | 4 cylinders, in-line, diesel engine | |||||
| Rated power | 98hp | |||||
| Displacement | 2771ml | |||||
| Manufacturer | Isuzu (ChongQing) Engine Co., LTD | |||||
| Tire | Size | 7.00-15 10PR nylon tire | ||||
| Number | 6+1 nos | |||||
| Frame | 172X65(4)mm | |||||
| Front axle | 2.5 tons | |||||
| Rear axle | 3.0-4.8 tons | |||||
| Drive form | 4X2 | |||||
| Suspension | Multi leaf springs | |||||
| Rated voltage | 24V,DC | |||||
| Transmissions | Isuzu MSB five speed transmission,5 speed forward 1 reverse. | |||||
| Steering device | Power assisted steering | |||||
| Steering wheel | Left hand drive | |||||
| Selective configuration | Tire of small tonnage 700-15 and big tonnage 700-16 | |||||
| If there is a slight change in the chassis parameters above,please take the actual product as the standard | ||||||

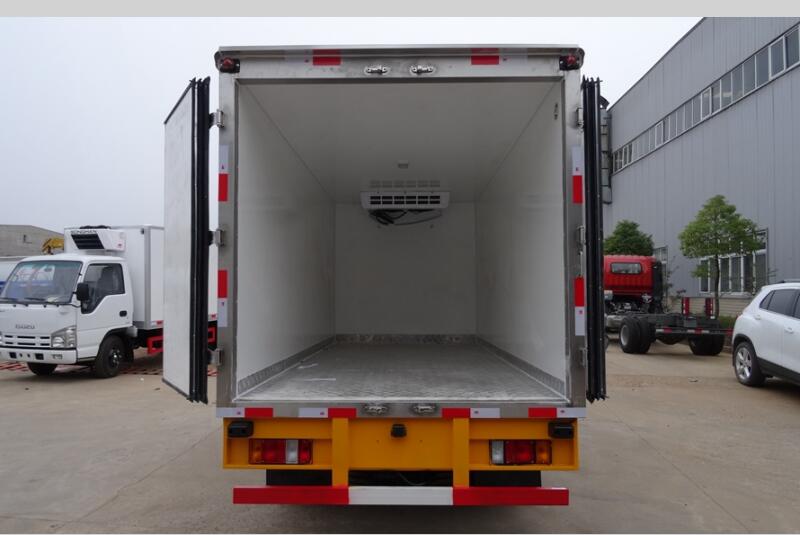

| Van body structure parameters | ||||||
| Van dimensions | 3050X1765X1240mm | Loading capacity | 3000kg | |||
| Van material(inner) | Color steel | Van material(outer) | Glass steel | |||
| Insulation layer | Polyurethane foam | Thickness of insulation layer | 8cm | |||
| Temperature | -18℃ | Color and Logo | Optional | |||
| Standard configuration | Chassis, sub frame, van body(inner color steel, outer glass steel,8cm polyurethane foam insulation),stainless steel locks, stainless steel door frame, with overhead light and anti collision device, refrigeration unit | |||||
| Selective configuration | Van body material(color steel plate, aluminum alloy, stainless steel),5cm polyurethane insulation layer, America, South Korea refrigeration unit. | |||||
